Aist Business Center

Raiffeisen Pregarten Foto Toni Rappersberger 20230421 13 web cut

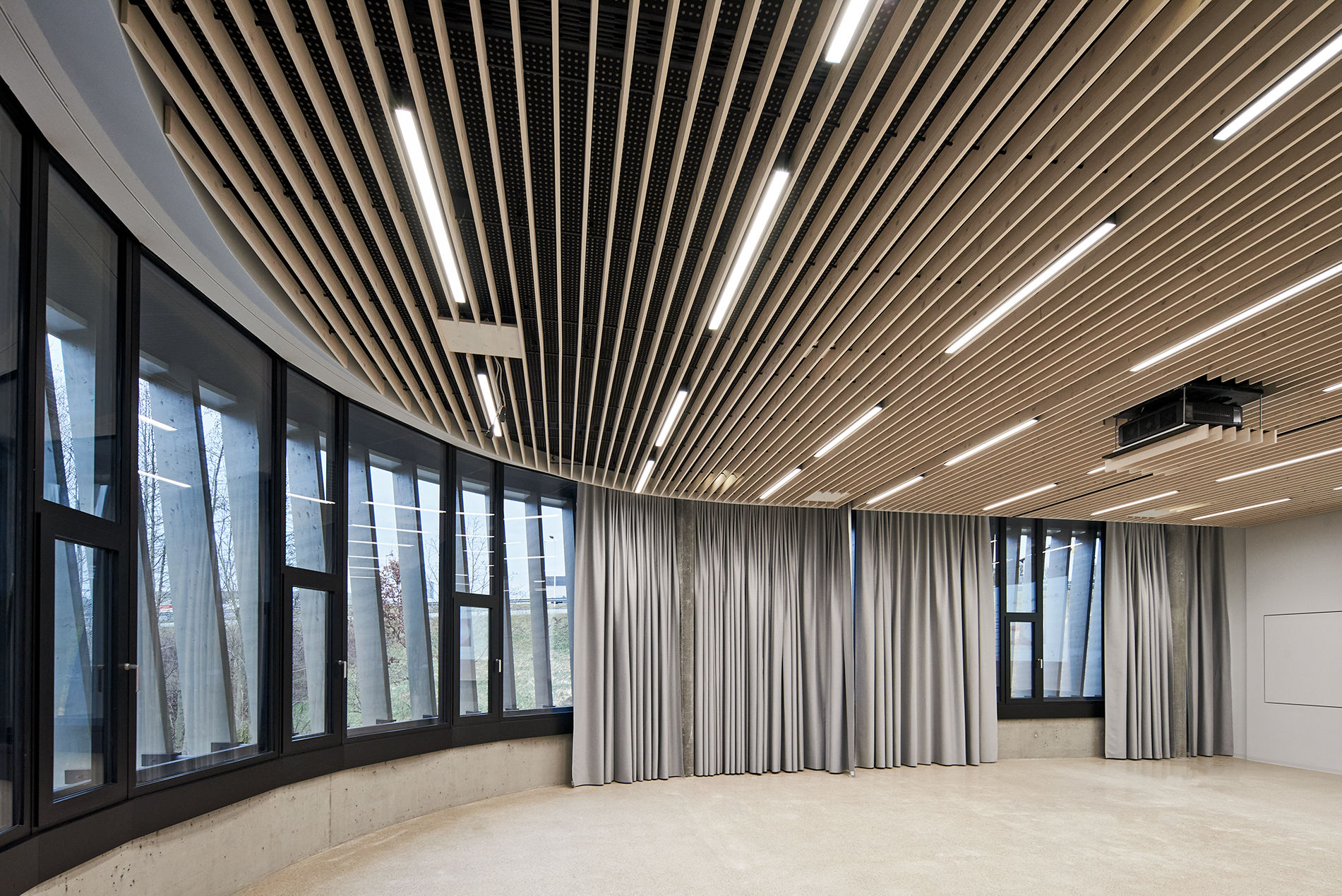

Raiffeisen Pregarten Foto Toni Rappersberger 20230217 74 web

Year

2019

Venue

Pregarten

State

Completed

Category

Work

Size

4.633 m²

Year

Venue

State

Category

Size

2019

Pregarten

Completed

Work

4.633 m²

Year

2019

Venue

Pregarten

State

Completed

Category

Work

Size

4.633 m²

Oscillations of nature

A rather unusual heading for a text explaining the design of a new regional competence centre for the Raiffeisen Bank! But it precisely expresses the way in which this business is deeply rooted in its history, an understanding that is more valid than ever before: nature and sustainability.

Pregarten Lageplan 01
Raiffeisen Pregarten Foto Toni Rappersberger 20230421 51 web

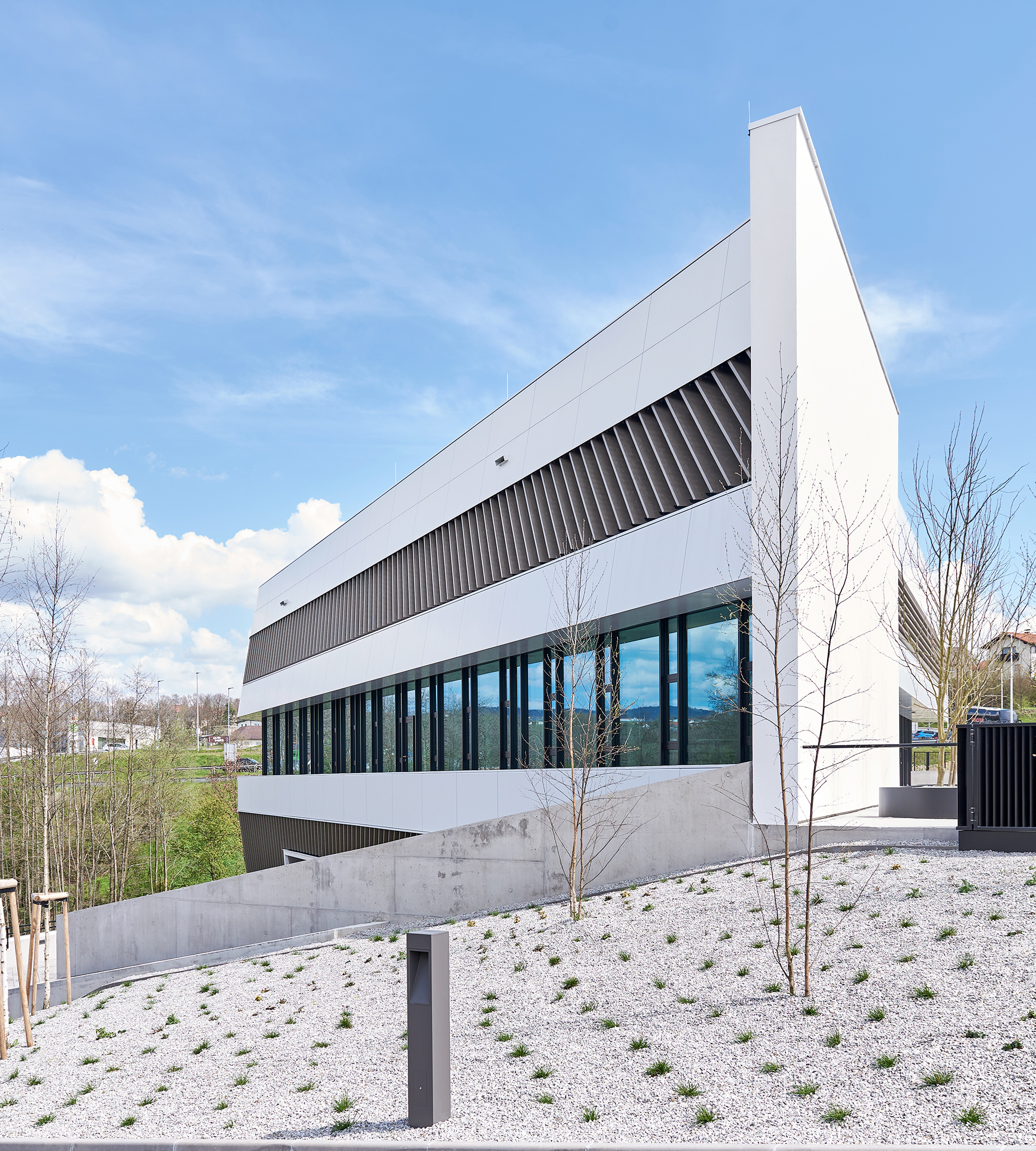

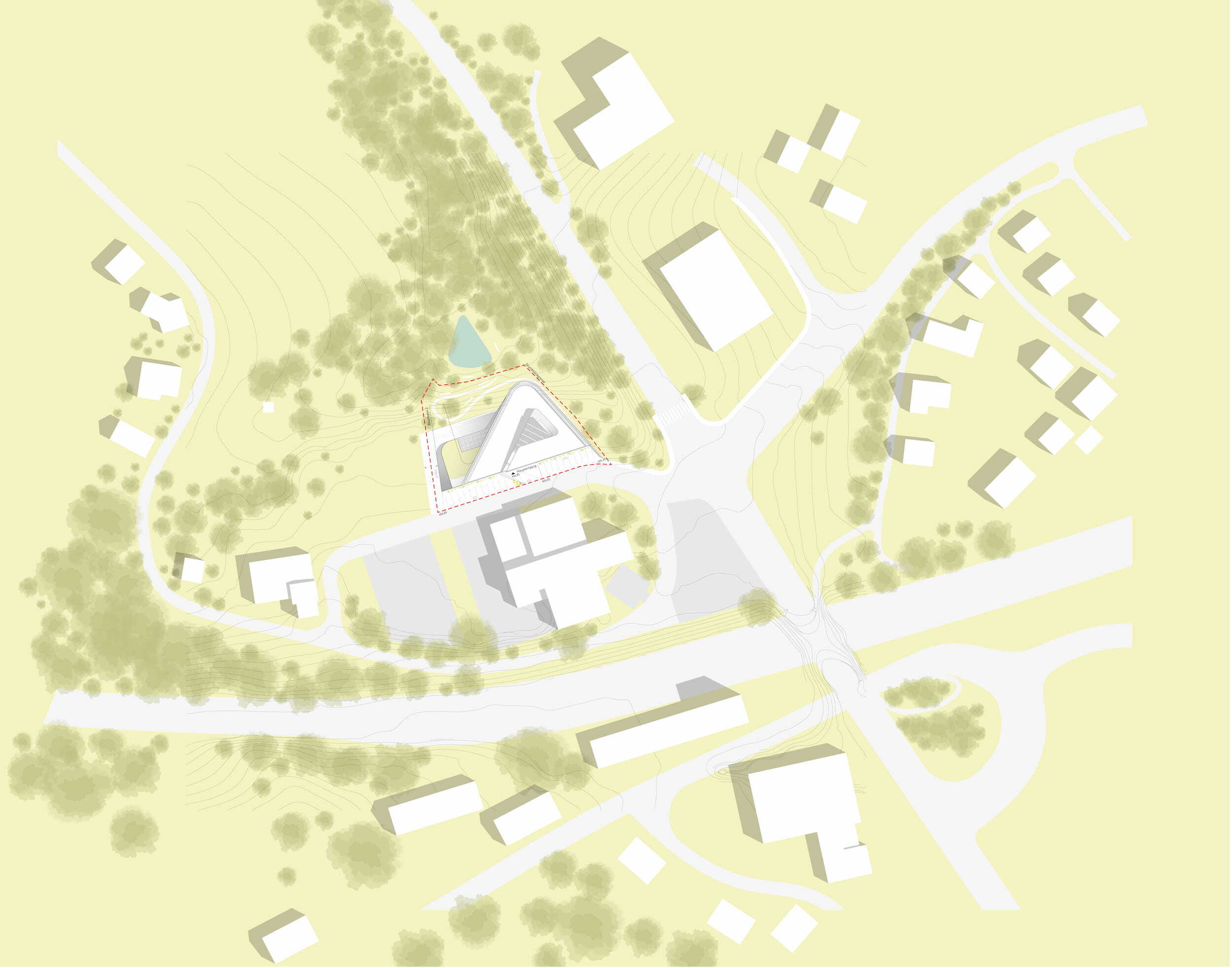

The start was an analysis of the site: the striking topography called for a deeper examination of this context. The slopes that roll gently towards a small pond inspired the form-finding process. The anticipated contours of the terrain were modulated and transformed, creating a gentle momentum in the building and a harmony of planes, edges and terraces as a resonance of the existing natural situation, so to speak – the building as an oscillation of nature.

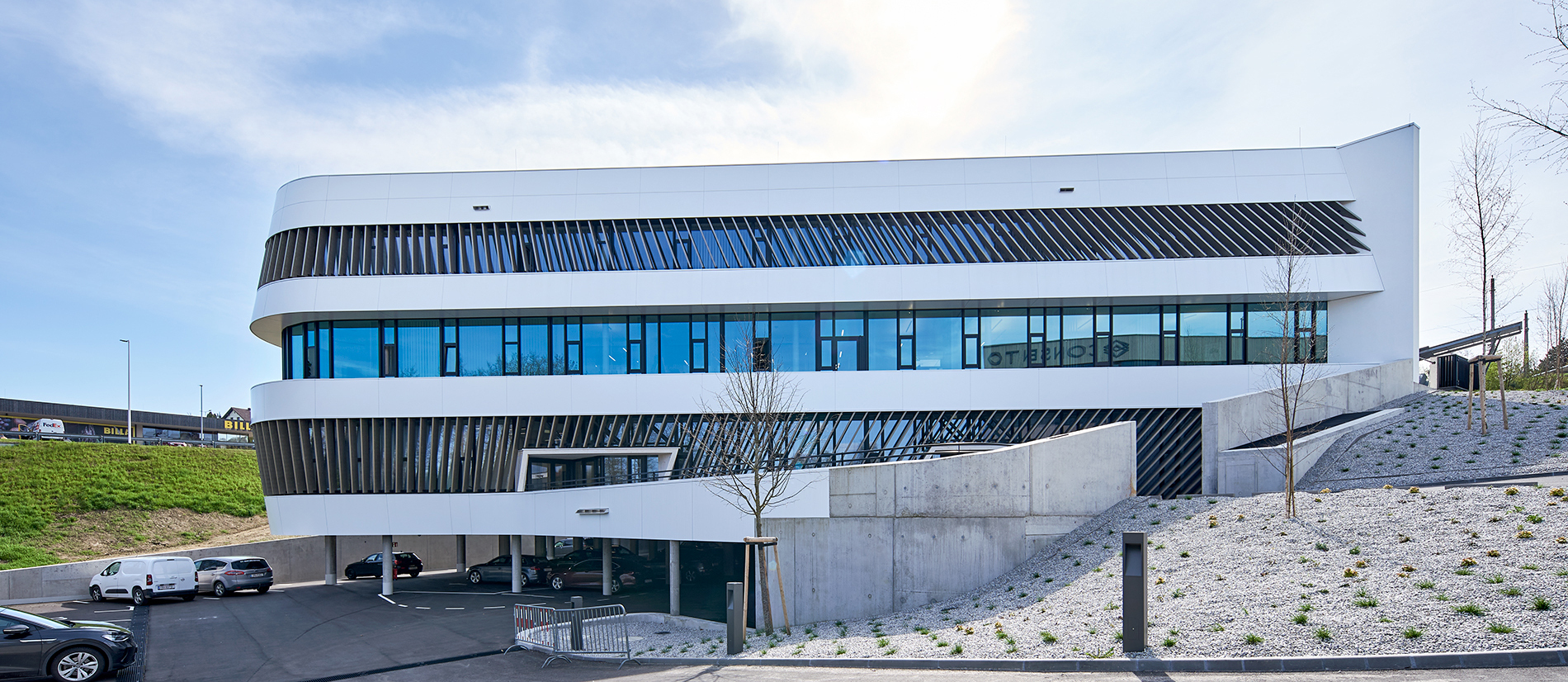

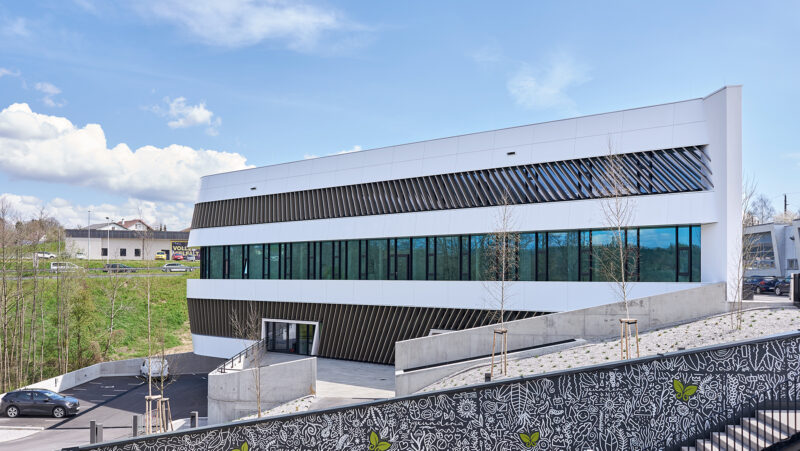

The rational facade on the entrance side is the counterpart to the smart form of the side that is oriented towards the landscape. On the entrance front we find a clear cross-section that relates to the road space. While on the landscape side the orientation generates the maximum possible length for arranging office spaces that have expansive views of nature, the entrance facade is laid out as communication factor that makes an inviting gesture. These qualities will be evident in both the first building phase as well as in the extension.

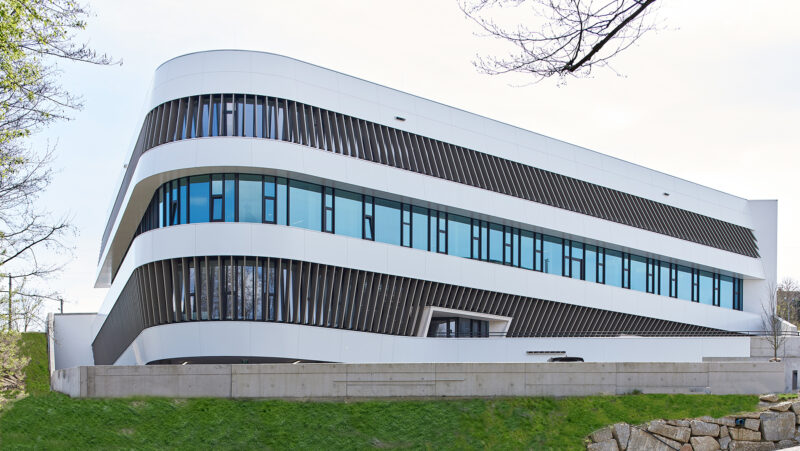

Raiffeisen Pregarten Foto Toni Rappersberger 20230421 10 mit rasen web line
Raiffeisen Pregarten Foto Toni Rappersberger 20230421 20 web

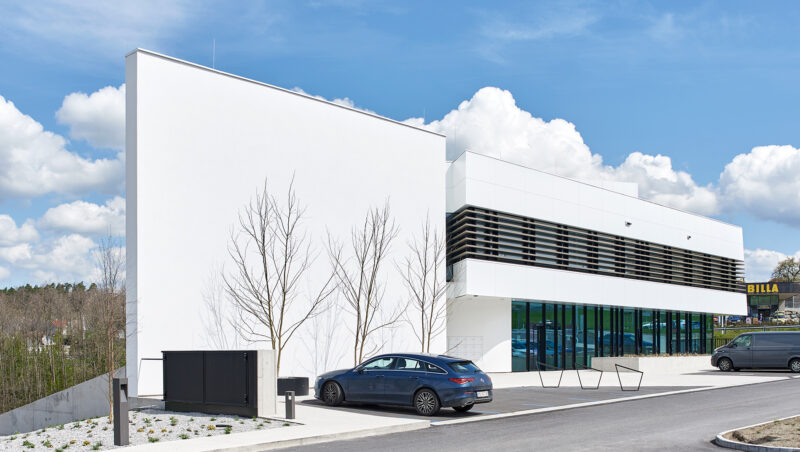

Raiffeisen Pregarten Foto Toni Rappersberger 20230421 26 web line

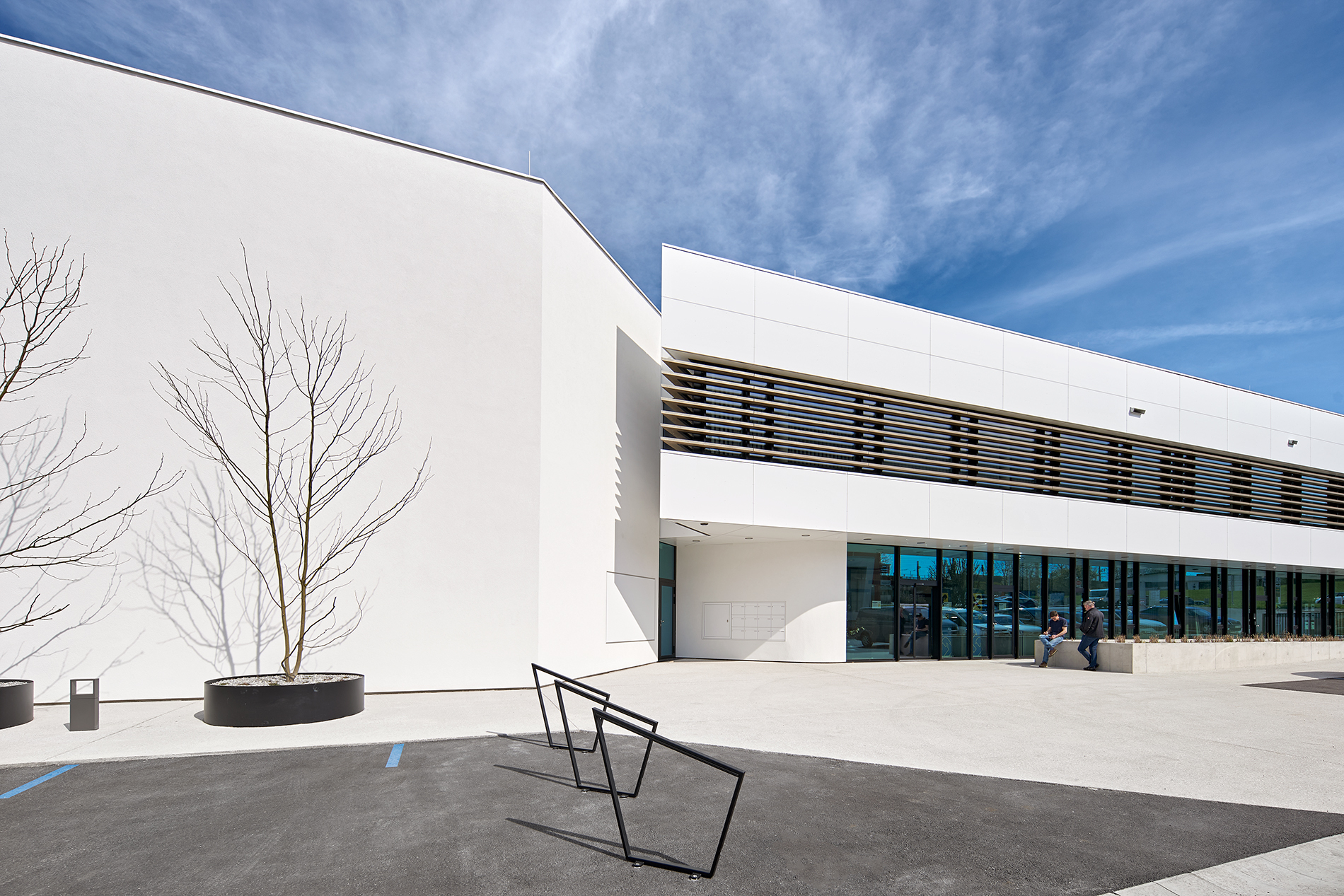

Raiffeisen Pregarten Foto Toni Rappersberger 20230421 29 web

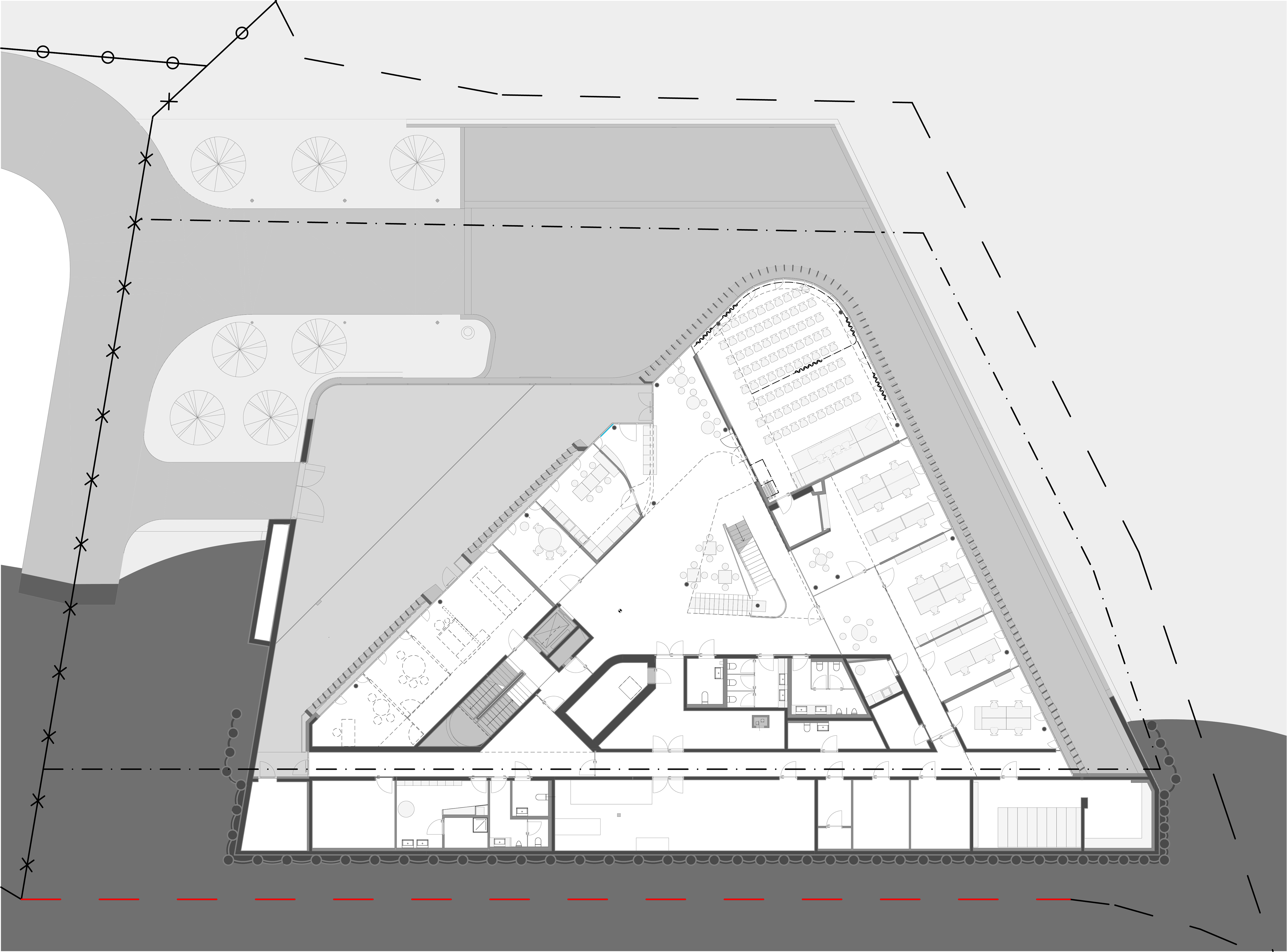

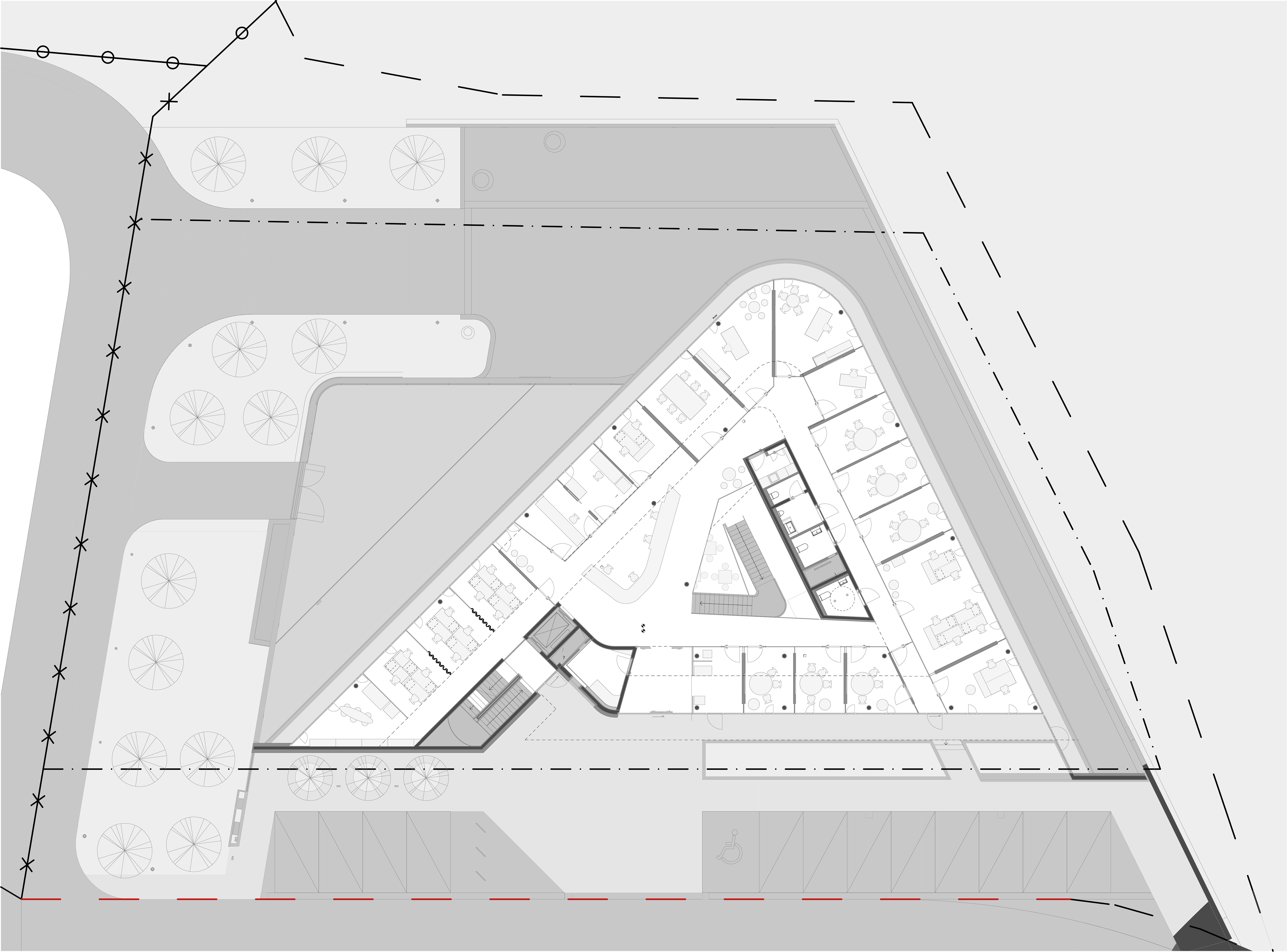

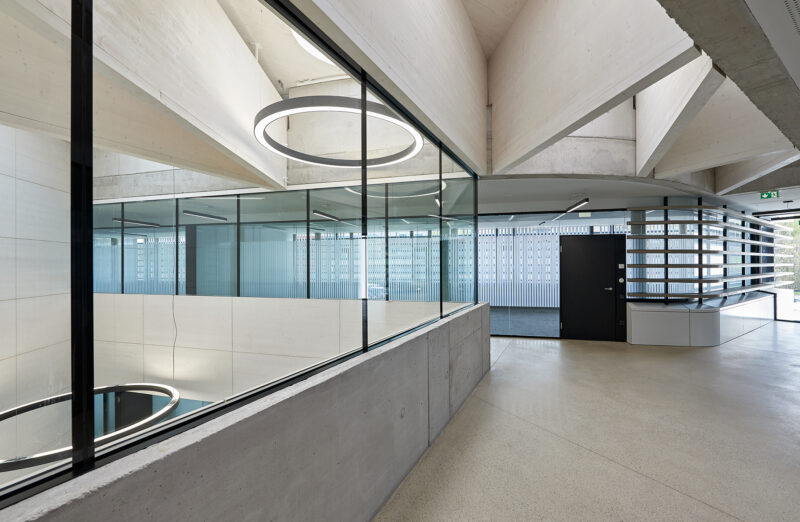

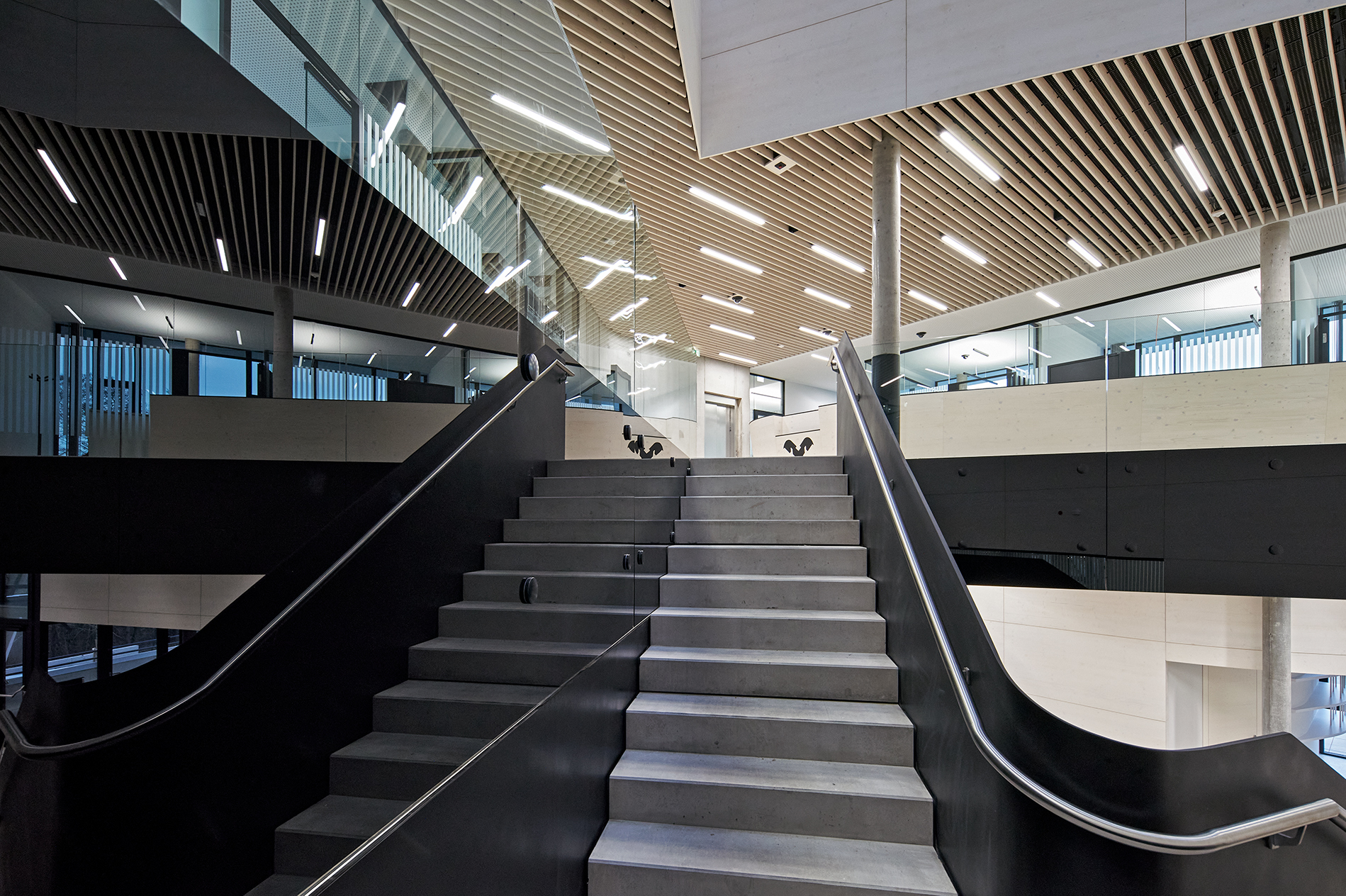

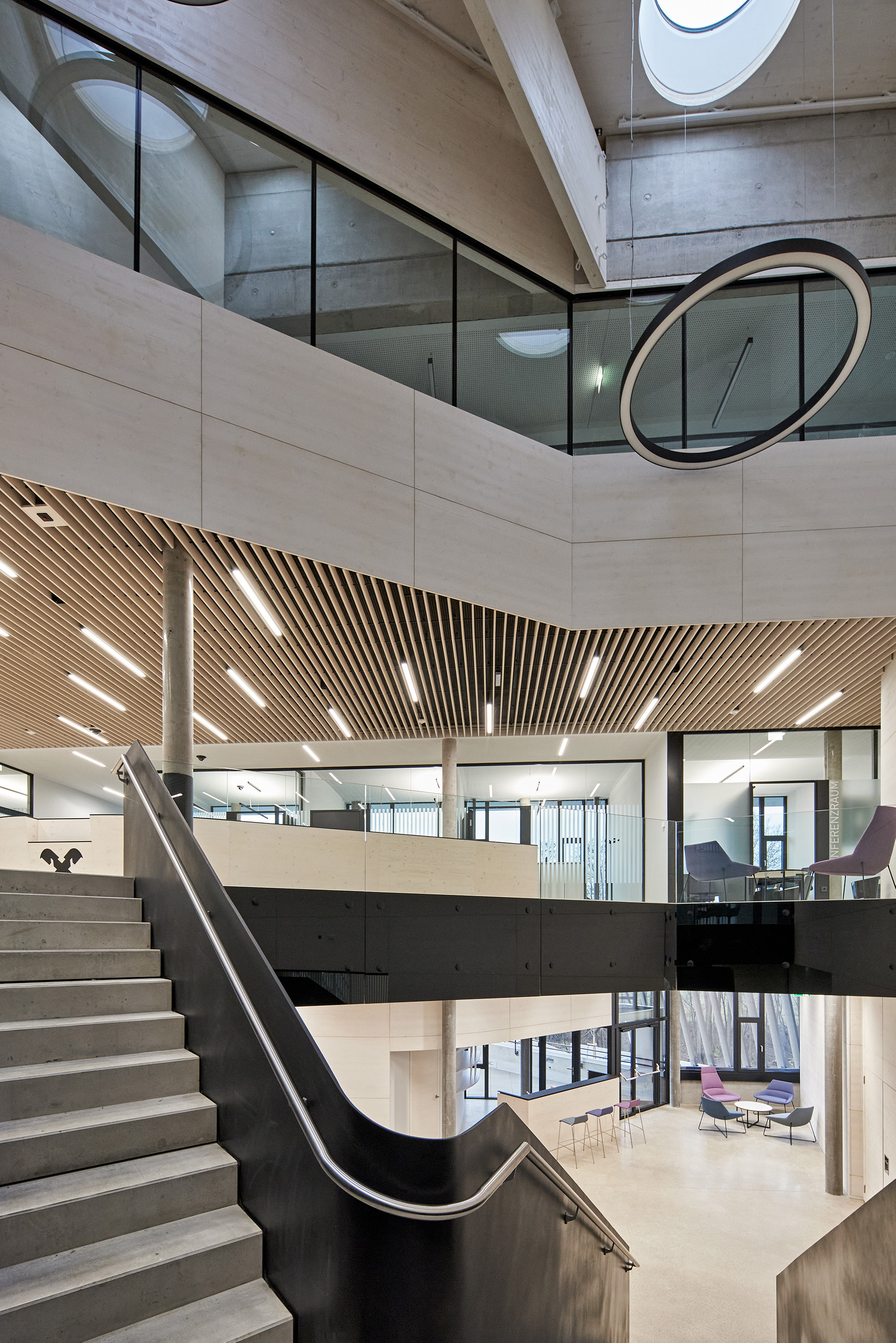

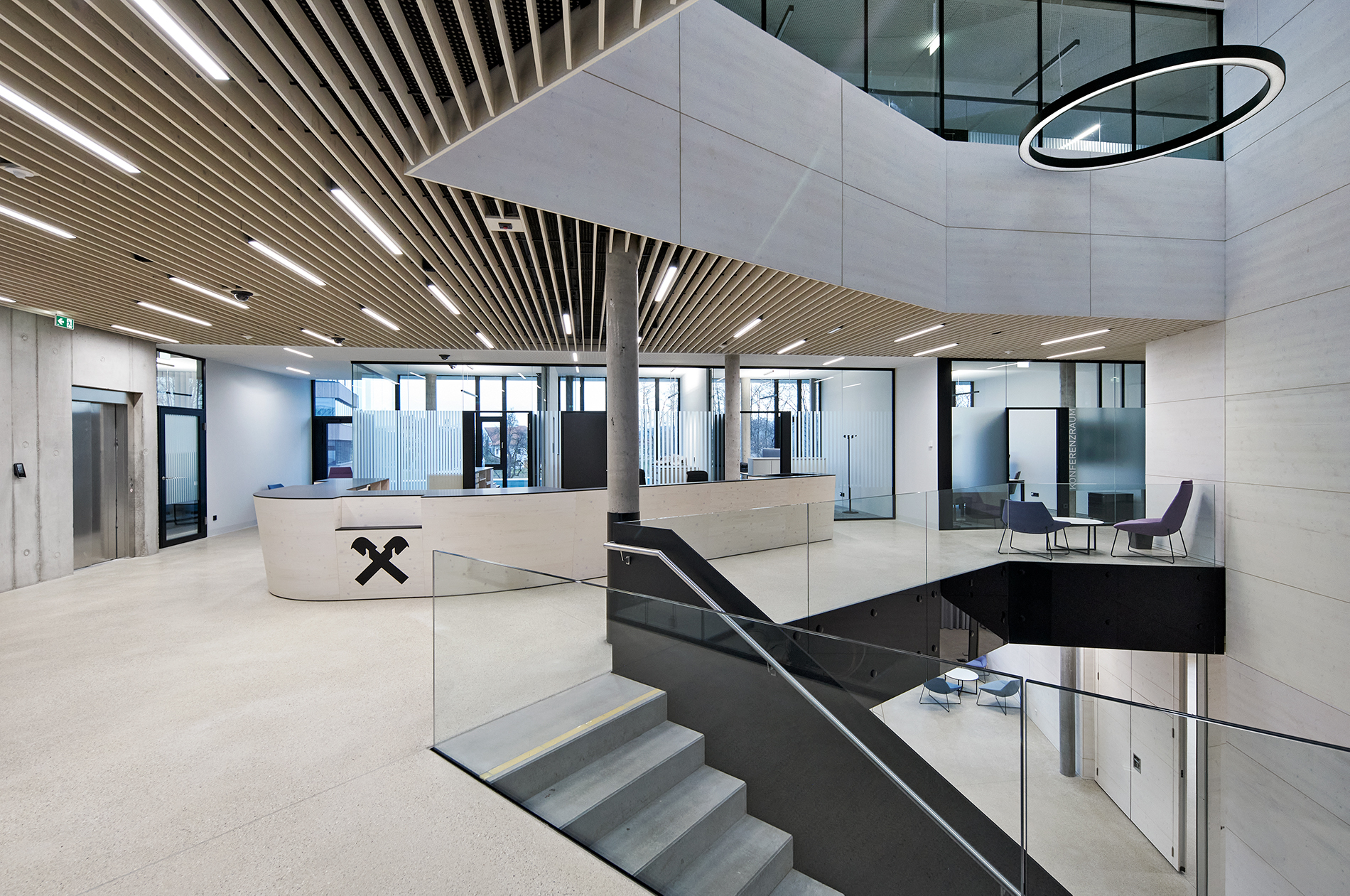

The individual levels of the building program respond intelligently to the overall topographical situation. The public floor is at the same level as the road and is therefore relates directly to the entrance. Upon entering an inviting space opens up and then gradually reduces towards smaller units that convey a sense of privacy and confidentiality. On the upper floor the management offices and those units that require greater quiet and individuality are located. The lower level is reserved for events and has direct access outdoors onto generously sized terraces.

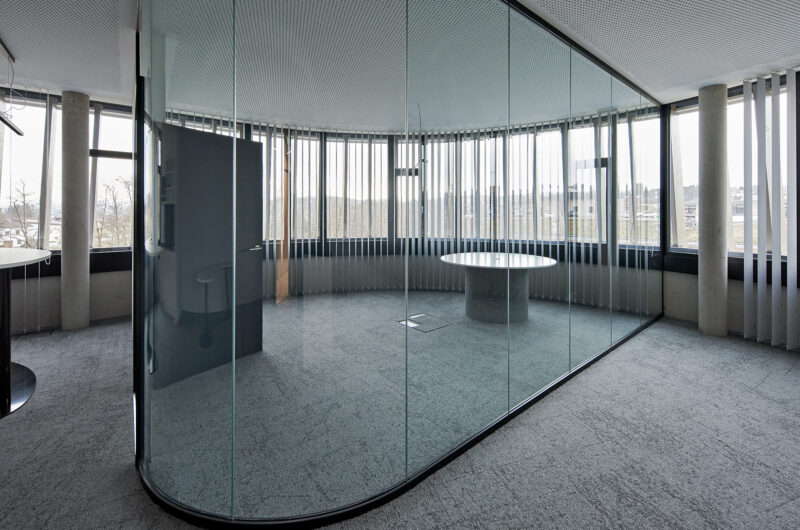

The curving office wings offer maximum flexibility in defining and separating units so that they can expand fluidly or shrink without creating the problem that, for instance as result of extension, part of one function suddenly finds itself in another wing. This also ensures flexibility in adapting to partner areas. The inserted core with the service functions forms an ambient filter to the partner areas so that, if required, a certain autonomy of the units can be achieved.

Raiffeisen Pregarten Foto Toni Rappersberger 20230217 59 web

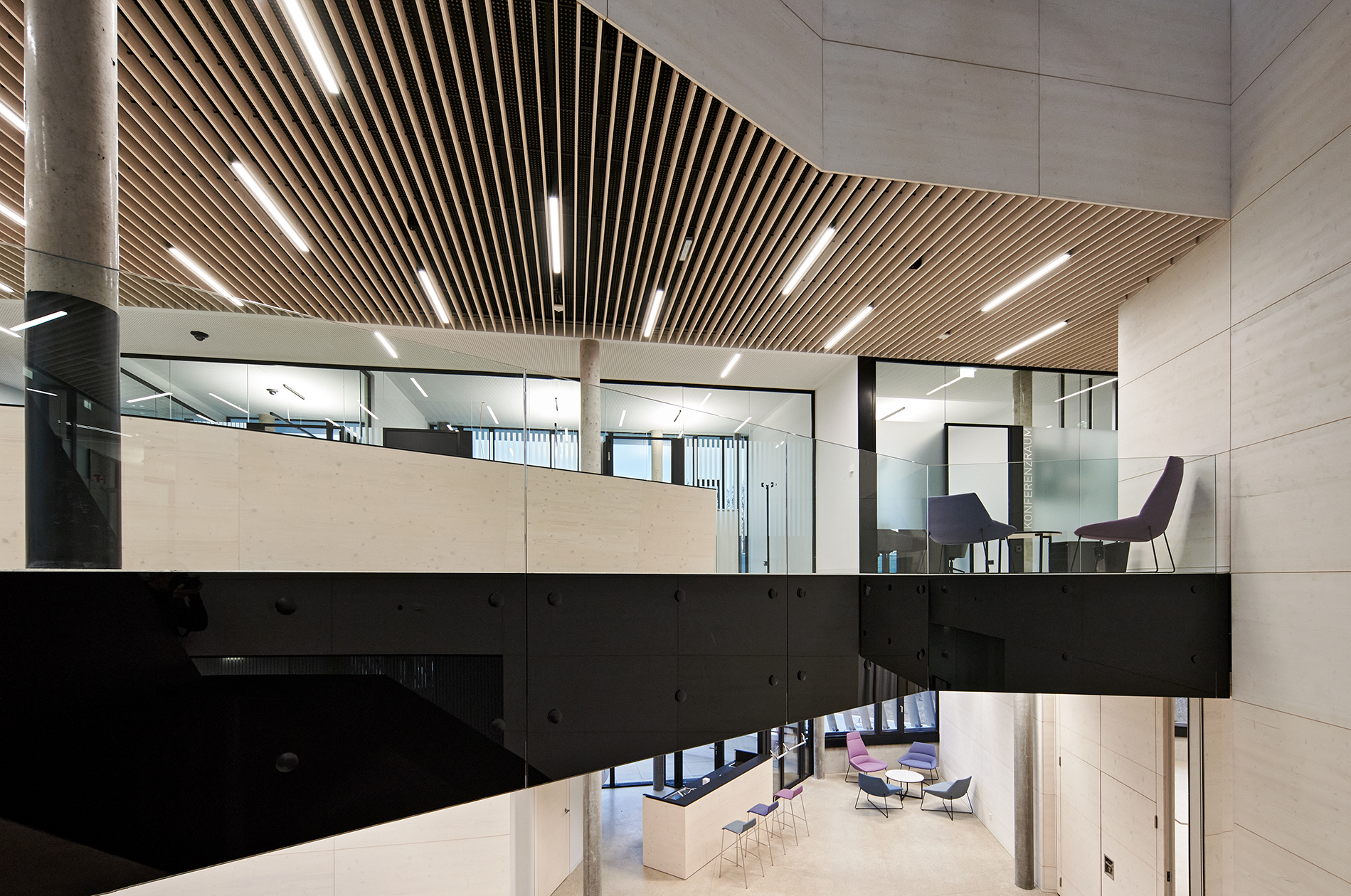

Oscillation with nature – an aspect that is also applied in the choice of materials and the differentiated way in which the overall design is formulated. The “core values” of Raiffeisen are given their place metaphorically: agriculture and forestry, nature and sustainability are expressed through the focussed, intensive use of wood. On the floors and some of the walls and ceilings wood is used in a variety of ways so that the entire interior can be experienced as a resonance of nature.

Oscillations of nature- the initial resonance is appropriately echoed in the bank’s future work for its partners and clients.

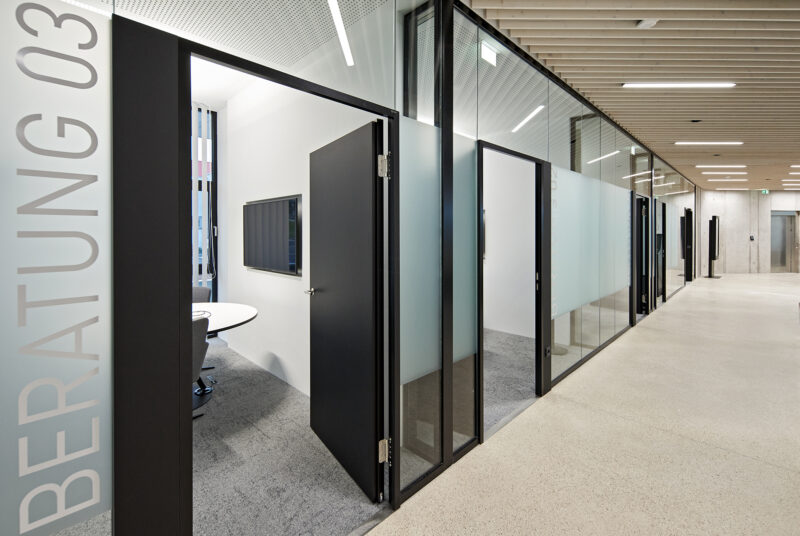

Raiffeisen Pregarten Foto Toni Rappersberger 20230217 111 web

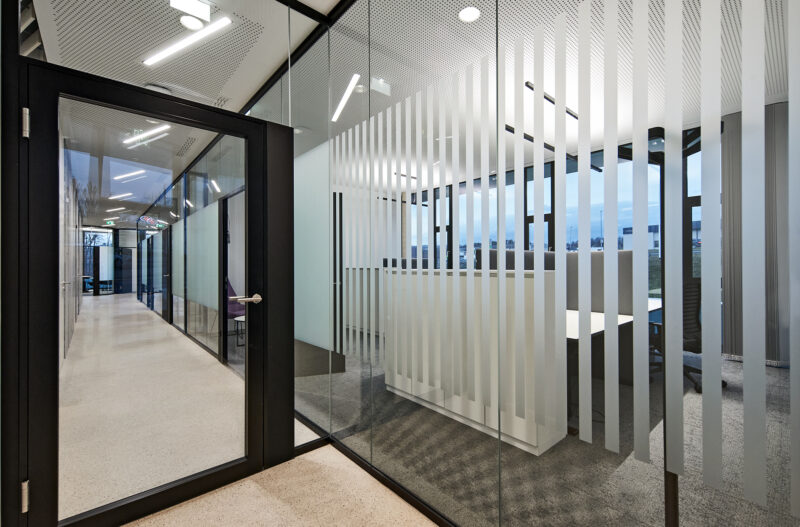

Raiffeisen Pregarten Foto Toni Rappersberger 20230217 118 web
Raiffeisen Pregarten Foto Toni Rappersberger 20230421 74 web
Raiffeisen Pregarten Foto Toni Rappersberger 20230217 113 web

Architecture

Pichler & Traupmann Architects

Design team

Bartosz Lewandowski (team leader)
Patrik Drechsler
Anna Gulinska
Jakub Kaczmarek
Andi Schermann
Jan Niklas Schöpf
Michael Wögerbauer

Project team

Michael Wögerbauer (project leader)
Adnan Balic
Mohammad Ekhlasi
David Guisado T.
Barbara Jarmaczki
Jakub Kaczmarek
Joachim Kess
Tibor Koczian
Bartosz Lewandowski
Elisa Mazagg
Jan Niklas Schoepf
Julian Straub
Milan Suchánek
Alexander Tauber
Severin Türk
Wolfgang Windt
Josef Zapletal

Client

Raiffeisenbank Aist eGen

Structural design

BETA TRAGWERK GmbH, Pregarten

Geotechnics

OÖ. Boden- und Baustoffprüfstelle GmbH, Leonding

Construction work coordination act

Tricon Wirtschaftsberatung - Baukoordination e.U., Haid

Building physics

TAS Bauphysik GmbH, Leonding

Structural fire protection

Egger-Service, Bad Zell

MEP

Mair&Stelzer GmbH, Steyr | Elektro Bräutigam, St. Valentin

Facade technology

Metallbau Wastler GmbH, Linz

Construction company

Arge RB Pregarten Kapl-Swietelsky

Hard facts

Start of planning: 2019
Usable floor area: 3.459 m²
Gross floor area: 4.633 m²
Gross volume: 16.662 m³
Location: Wartberg ob der Aist
Function: Competence Centre (bank, office and event space)
Scope: Architectural planning BIM

Photos

Toni Rappersberger, Vienna

Invited competition

1st prize
